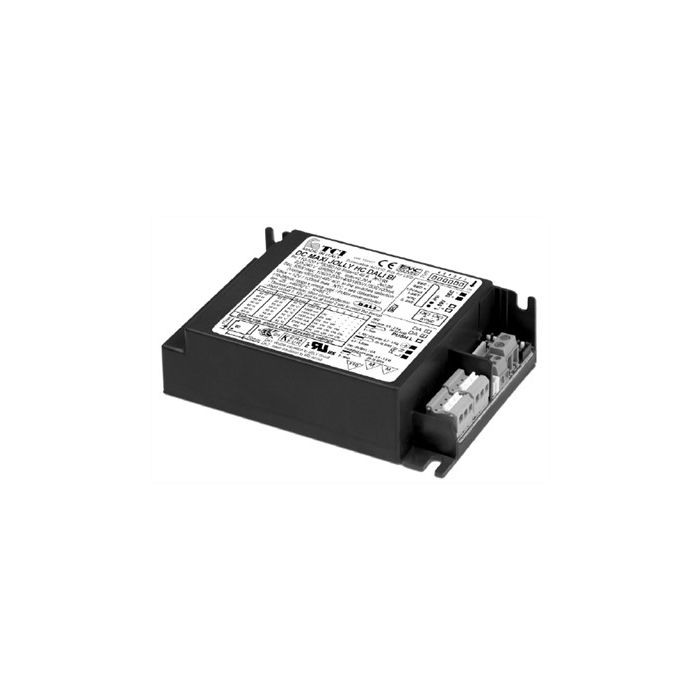

DC MAXI JOLLY HC BI DALI LED DRIVER 26-48VDC 1050-2100MA 55W110X76X30MM 1-10V & PUSH

Features

• Multipower driver supplied with dip-switch for the selection

of the output current.

• IP20 independent driver, for indoor use

(DC MAXI JOLLY HC/2 DALI).

• Class I protection against electric shock for direct or indirect

contact (DC MAXI JOLLY HC/2 DALI).

• Driver for built-in use (DC MAXI JOLLY HC DALI BI).

• It can be used for lighting equipment in protection class I.

• Active Power Factor Corrector.

• Analogical input (NTC) for thermal sensor connection.

• Auxiliary output 12 V max. 100 mA.

• Current regulation ±5 % including temperature variations.

• Input and output terminal blocks on the same side

(wire cross-section up to 1,5 - 2,5 mm2 / AWG15 - AWG13).

• Clamping screws on primary and secondary circuits for cables

with diameter: min. 3 mm - max. 8 mm (DC MAXI JOLLY HC/2

DALI).

• Protections:

- against overheating and short circuits;

- against mains voltage spikes;

- against overloads.

• Thermal protection = C.5.a.

Klik hier om de datasheet te bekijken
